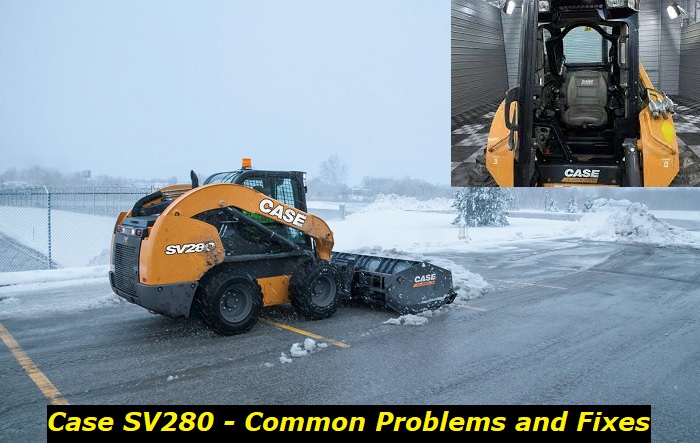

Case SV280: Problems, Durability, Repairs

When shopping for a loader, it is common to want to get a reliable, low-maintenance, and long-lasting loader that will give you value for money. The overall value for money is measured against loader output, length of service, ease of operation, and the cost of repair and maintenance. In this article, we diagnose the Case SV280 loader to find out about its durability, problems, and repairs to enable you to make an informed choice.

Key facts about the Case SV280

The CASE SV280 Skid Steer is a medium-range loader with high torque, strong hydraulic flow, and user-friendly features that make it rank among the best. It boasts of a visibility of its kind, vertical lifting capabilities with a ride, and EZ-EH controls and functions that are easy to adapt for any available task. Its vertical lift path provides maximum reach which makes it ideal for loading trucks and other related lift-and-carry applications.

The Case SV280 boasts a best-in-class torque and an auxiliary flow of breakout force that can tackle any demand application. It has exclusive control capabilities that provide an electro-hydraulic responsive convenience. The application has a customizable control set-up menu for easy adjustment and sensitivity settings. Its intuitive 8-inch LCD operation interface display allows for improved overall performance

The Case SV 280 has the widest cab among its peers with a friendlier and more comfortable entry and working space for the driver. It has a curved rear window and the thinnest side screens that provide the best 3600 visibility ever in the industry. The Case boasts exclusive side lights that assist with visibility even when working at night.

One of the Case SV280 loader's key features is its large 100-liter (26 gallons) fuel tank that allows the loader to operate the whole day without any need for refueling.

Repairs/maintenance

The Case SV280 skid steer is one of the easiest to repair or carry out routine maintenance due to the following reasons:

• All physical mechanical checks can be carried out at the rear of the machine without requiring you to move all over the machine looking for specific parts.
• LCD multi-function display allows the operator to access real-time data on how the machine is operating as well as giving out its performance parameter. The display also shows different fault codes that may come along during operation. These codes give the operator the exact parameters and location of the faults.
• This form of arrangement allows the operator an easy-to-use interface for manual checking at the rear and internal data displays available in the cab
• Additionally, all service points of the Case SV 280 are grouped at one point at the rear. This enables the operator or mechanic to easily access the points and carry out any needed repairs or maintenance without much hustle.
• The tilting cab enables easy access to all other parts of the Case SV280 loader.

And with the maintenance-free Tier 4 final emissions solution available on the Case SV280 where no fluids or filter services are required, the skid Steer is one of the easiest and cheapest to repair and maintain.

Durability

The Case SV280 ranks among the most durable Skid Steers in the market. Due to their low service requirement over its lifetime, it does not call for massive maintenance costs. The Case SV280 comes with a 1-2 year full coverage warranty and an engine warranty that covers most of the internal parts, cylinder block, engine oil cooler, and other engine-related parts. The warranties are an embodiment of the durable nature of Case SV280.

In addition, the loader has a guaranteed 5000-hour operation lifespan. This time can be much longer depending on the use and maintenance program in operation. Generally, many key parts of the Case SV280 loader can have a longer lifespan than that stated on the purchase. Since it comes with Tier 4 emissions standards, the loader does not require any additional fluids or filter replacements/maintenance, making it a low-maintenance and long-living loader.

Problems of the Case SV280

The Case SV280 skid steer loader, like many of its peers, is susceptible to breakdowns and faults that require identification and repairs. Here, we highlight some of the common problems and show how one goes about identifying and solving the problem.

1) Engine failing to Start or run

Case SV280 may sometimes fail to start when ignited. In such circumstances, the display may indicate error code 1051(No CAN Communication with Engine Controller). Normally, code 1051 means there is no communication with the engine controller that is responsible for issuing commands to start the engine.

Whenever such a problem occurs, the first stop should be the electric power supply to the engine. Check your skid battery and the entire charging system to ascertain that they are operational and are providing the required electric current flow. Ensure to check all power cables, connections, and grounds to confirm they are working properly.

Check all the relays and fuses in the skid to ensure they are working perfectly and that they are not losing or blocking any electric current to the control module. Apart from the mentioned sections, verify that the ignition switch and all related wiring circuits are not faulty or damaged. Keenly check the ignition system to ensure there is power getting in and out at every turn of the ignition switch. Elsewhere, check and verify whether the control module of Case Sv280 is receiving power. If a power loss is detected, the problem could be a result of a broken harness or connector pins which make the control module not communicate with the engine ignition.

If none of these checks returns a fault, connect the dealer diagnostic software to the skid to try and trace where the problem might be. The diagnostic tool can confirm whether the problem is in the software or a fault in the electronic system of the control module. Such a case would call for an expert repair to put Case SV280 back in operation.

2) Other electrical problems

Case skids are known to have a myriad of electrical failures which are hard to detect. You may find that the instrument cluster has no power or very little power is getting to the instrument cluster. And all this happens despite having a good working battery, fuses, and other electrical-related gadgets. The wiring harness is usually the major culprit.

To access the wiring harness, lift the cab and trace the main harness to the fuse box. The problem is usually at the split-off point where the harness splits to also feed the rear of the skid. The problem may be a result of broken splices and other parts due to frequent rubbings. The harness has to be replaced. Pull the pumps and the kick plate out to be able to access the electrical harness and then replace it. This should solve the problem immediately.

3) Unexpected Engine shut down

At times, the Case SV280 may have regular and annoying engine shutdowns after a few minutes of running. The engine may kick start all fine and run for about ten minutes before shutting down on its own. This fault may be repeated every too often.

The problem could be traced to the hydraulic filter or the related switch. This could be indicated on the display as error 1201 or 1205. The filter may be returning the restriction indicator which then forces the engine to reset and shut down after running for a few minutes. The best option is to replace the filter and the switch to clear this problem once and for all to prevent unwanted engine shutdowns.

4) Faulty Gauge Reading

Another common problem of the Case SV280 is a faulty fuel gauge which is showing a full tank, while in fact, the fuel tank is empty. In some instances, the fault reading may come from the sending unit, which, if it has an electric short, will give the wrong fuel gauge reading.

To go around this problem, the first test is to see if your sending unit is working properly. Unhook the sending unit's wiring harness and check for any faults before replacing it. If the gauge still shows the wrong gauge reading, then you need to perform further checks to identify the source of the problem.

Usually, the problems of faulty gauge readings arise when your loader sits idle for a long period. The floater that moves up and down depending on the fuel level in the tank may get stuck at some point due to inactivity. The problem can be solved by opening the fuel unit and cleaning the floater section or replacing it with a new one. Simply unscrew the sending unit assembly, unplug the electrical wires, clean all movable parts, or replace the floater actuator. Make sure you clean any debris that may get into the unit before screwing it back into position.

Final thoughts

With the above information, it is clear that despite Case not being among the most common skid steer brands, the Case SV280 presents a strong case of operational ability and long service under low costs. It may be a loader that one can consider placing your bet on for a guaranteed performance.
